Introduction
C85W series is a cost-effective fully hydraulic tire excavator developed and manufactured by Xinyuan Heavy Industry on the basis of B90 high-end series, catering to the needs of customers.
The strong power and double pump hydraulic system make the work more efficient, the full hydraulic automatic travel makes it more flexible and mobile than other products in the same category, the extended working device can bring a wider operating range, and the weighted rear counterweight makes the whole machine have better stability, which is an efficient, energy-saving and reliable product with high cost performance.
Good Points
The engine with high pressure common rail injection system has excellent performance and is perfectly matched with the dual pump hydraulic system for fast and smooth action.

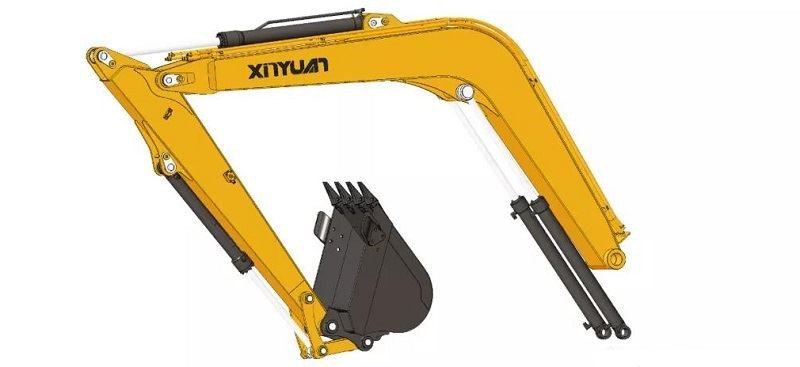

The movable arm is designed with double cylinders for more powerful action; the optional extended movable arm and bucket bar can be installed to make the working device have a larger working range.

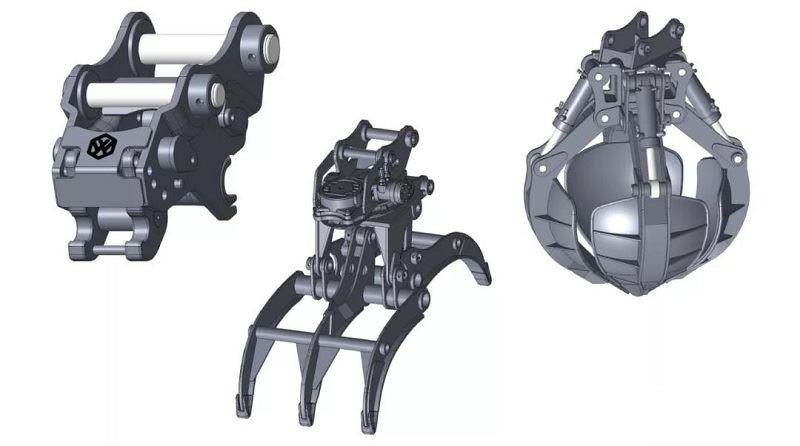

It can be equipped with a series of optional attachments and quick-change system, which can be capable of handling different working conditions.

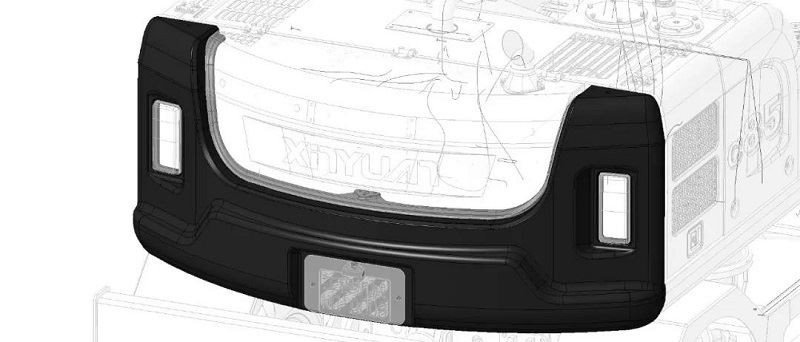

Rear counterweight iron to do weighted design, can better ensure the stability of the whole machine operation.
Efficient and flexible travel mechanism, hydraulic motor drive, stepless variable speed travel, with greater traction, better climbing performance, the maximum travel speed up to 30KM/h.
Specific Data
| DIMENSIONS | |
| Overall Length | 6020mm |
| Overall Width | 2250mm |
| Overall Height | 2910mm |
| Spread of Axles | 2500mm |
| Tyre Diameter | 750mm |
| Width of Grounding | 490mm |
| Track | 1755mm |
| Min Height Above Ground | 328mm |
| Width of Bulldozing | 2250mm |
| Rising Distance of Bulldozing | 500mm |
| Height of Bulldozing | 85mm |
| Width of Bucket | 720mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6800mm |
| Max Digging Depth | 3980mm |
| Max Digging Height | 7410mm |
| Max Dumping Height | 5290mm |
| Min Front Radius | 2115mm |
| Min Tail Radius | 1945mm |
| TECHNICAL SPECIFICATION | |
| Engine | YUCHAI 4DK |
| Power/Speed | 56kw/2200rpm |
| Machine Weight | 8300kg |
| Volume of Bucket | 0.30-0.45m³ |
| Set Pressure of Main Overflow Valve | 25MPa |
| Max Digging Force | 45kN |
| Gradeability | 35° |
| Max Traction Force | 50kN |
| Max Travel Speed | 30km/h |
| Swing Speed of Platform | 11rpm |
| Fuel Tank Capacity | 180L |
| Hydraulic Tank Capacity | 165L |
