Introduction
The new C95 full hydraulic construction equipment excavator is a new generation flagship product that is completely developed and upgraded on the basis of B90 series products and independently researched, developed and manufactured. It won the CMIIC2021 star product award. XINYUAN owns the independent intellectual property right of this excavator.
Specification
|
DIMENSIONS |
|
|
Overall Length |
6375mm |
|
Overall Width |
2250mm |
|
Overall Height |
2950mm |
|
Spread of Axles |
2500mm |
|
Tyre Diameter |
825mm |
|
Width of Grounding |
490mm |
|
Track |
1755mm |
|
Min Height Above Ground |
345mm |
|
Width of Bulldozing |
2250mm |
|
Rising Distance of Bulldozing |
500mm |
|
Height of Bulldozing |
85mm |
|
Width of Bucket |
780mm |
|
RANGE OF OPERATION |
|
|
Max Digging Reach |
6865mm |
|
Max Digging Depth |
4075mm |
|
Max Digging Height |
7435mm |
|
Max Dumping Height |
5245mm |
|
Min Front Radius |
2250mm |
|
Min Tail Radius |
2090mm |
|
TECHNICAL SPECIFICATION |
|
|
Engine |
YUCHAI 4DK |
|
Power/Speed |
73.5kw/2200rpm |
|
Machine Weight |
8875kg |
|
Volume of Bucket |
0.30-0.50m³ |
|
Set Pressure of Main Overflow Valve |
28MPa |
|
Max Digging Force |
50kN |
|
Gradeability |
35° |
|
Pressure to the Ground |
50kpa |
|
Max Traction Force |
48kN |
|
Max Travel Speed |
31km/h |
|
Swing Speed of Platform |
11rpm |
|
Fuel Tank Capacity |
180L |
|
Hydraulic Tank Capacity |
165L |
Advantages

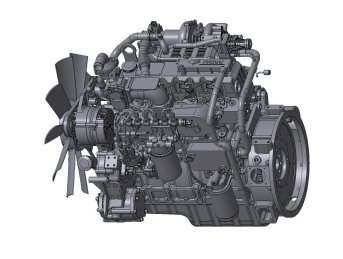

1)High power Engine
This model of wheel excavator equipped with BOSCH high-pressure common rail injection system. YC4DK four cylinder electric injection diesel engine is equipped. This engine has the advantages of high performance and low energy consumption. The high-power engine provides powerful power guarantee for the excavator. Meet to the Chinese National Non-road Machinery Emission standard III.

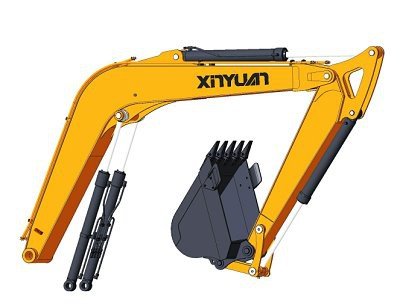

2)Strong working device
The boom is designed with double oil cylinders, with stronger excavation and hoisting capacity. The boom and stick are strengthened, with the boom length of 3790mm and the stick length of 1970mm. This model has a wider range of effective operations. The boom components are automatically welded by robots. The welds are even and firm, making the boom more durable and stable in quality. The surface painting is completed automatically by the robot, which has the advantages of smooth surface and uniform painting.

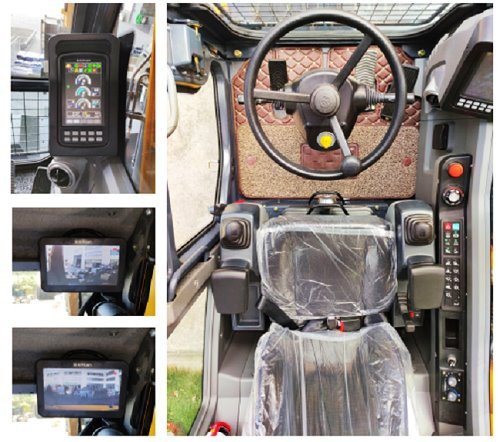

3)Operation room
The internal structure of the cab is spacious. Large size glass design is adopted. It has the characteristics of wide vision and small blind area. The bottom is designed with shock-absorbing plates to improve the comfort and enhance the sound insulation effect of the cab. The layout of the operating device conforms to ergonomics. Each construction equipment excavator is equipped with the intelligent control system of the whole machine instrument as standard. Equipped with reversing image and blind area monitoring function. It has an independent monitoring image display screen. Expand the driver’s vision around the excavator and reduce safety accidents caused by blind areas. The function of automatic shift is adopted to make daily operation convenient.
FAQ
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Which countries were you have exported?
A2:We have exported to Philippine, Vietnam, Pakistan, etc.
Q3:What the brand of hydraulic pump are you used?
A3:We used the self designed and developed hydraulic pump. It could be better matching with our engine.
Q4:Did your excavator have ECU or ECM?
A4:Our excavator have ECU.
Q5:Can we require to change the hydraulic pump?
A5:Sorry,we can’t change the hydraulic pump. Because our hydraulic pump is designed and developed which according to our engine. It could be have better use the power of the engine and improve the working efficiency.
