Introduction
C85 is a cost-effective wheel excavator,which is different excavator sizes in the wheel excavator market ,developed and upgraded for clamping conditions to meet the needs of users. This wheeled excavator is independently developed and manufactured by XINYUAN. Has a wider working range by selecting different working devices.
Specification
|
DIMENSIONS |
|
|
Overall Length |
6020mm |
|
Overall Width |
2250mm |
|
Overall Height |
2910mm |
|
Spread of Axles |
2500mm |
|
Tyre Diameter |
750mm |
|
Width of Grounding |
490mm |
|
Track |
1755mm |
|
Min Height Above Ground |
328mm |
|
Width of Bulldozing |
2250mm |
|
Rising Distance of Bulldozing |
500mm |
|
Height of Bulldozing |
85mm |
|
Width of Bucket |
720mm |
|
RANGE OF OPERATION |
|
|
Max Digging Reach |
6800mm |
|
Max Digging Depth |
3980mm |
|
Max Digging Height |
7410mm |
|
Max Dumping Height |
5290mm |
|
Min Front Radius |
2115mm |
|
Min Tail Radius |
1945mm |
|
TECHNICAL SPECIFICATION |
|
|
Engine |
YUCHAI 4DK |
|
Power/Speed |
56kw/2200rpm |
|
Machine Weight |
8300kg |
|
Volume of Bucket |
0.30-0.45m³ |
|
Set Pressure of Main Overflow Valve |
25MPa |
|
Max Digging Force |
45kN |
|
Gradeability |
35° |
|
Max Traction Force |
50kN |
|
Max Travel Speed |
30km/h |
|
Swing Speed of Platform |
11rpm |
|
Fuel Tank Capacity |
180L |
|
Hydraulic Tank Capacity |
165L |
Advantages

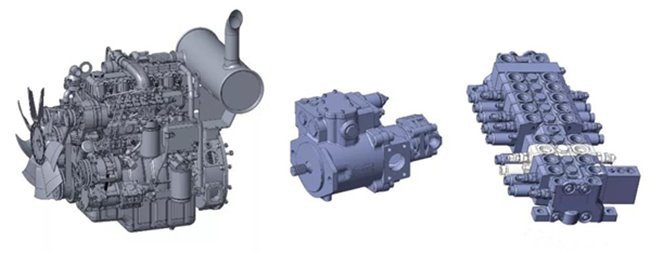

1)High power engine
C85 wheeled excavator is equipped with an engine with High-pressure common-rail injection system presenting excellent working performance. The emission standard of engine meet Chinese National Non-road Machinery Emission Standard III. Double pumps and double circuits of hydraulic system is also set in this machine working perfectly with the engine. Which leads to a smoother action, better technic, more stable condition and lower maintain cost.

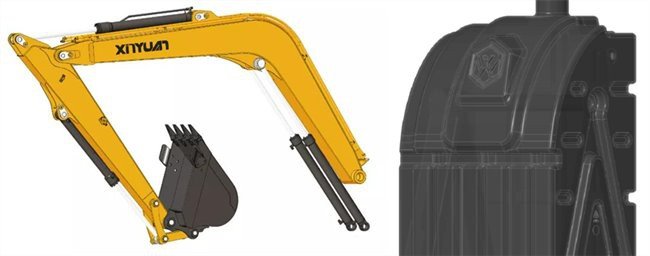

2)The Stronger boom and bigger oil tank
This model of wheel excavator can be equipped with extended boom and stick. So that the working device has a larger working range. The boom is designed with double oil cylinders, which makes the excavation force stronger. In addition, the large capacity plastic fuel tank of C85 can hold 180L of fuel at a time. Extend the working time of the excavator. The manufacturing process of the oil tank is rotomolding, with multiple reinforcing ribs for reinforcement. So that the oil tank is stronger and cleaner.

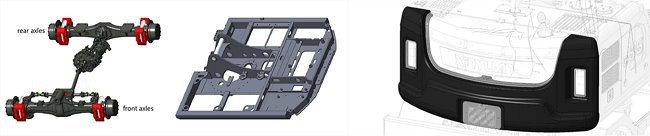

3)The Self-developed axles,platform and counterweight
XINYUAN independently developed front and rear axles, with integral casting axle housing. Has stronger bearing capacity. XINYUAN has a number of patents in this regard. The platform is optimized according to the working conditions of domestic excavators, which makes the structure compact and stable. All cast iron integrated rear counterweight has beautiful and harmonious appearance. Designed for clamping operation, the stability is greatly improved.
Application
This model of tyre excavator is optimized and developed for clamping conditions. It can be used to carry sugarcane, wood, stone and other materials with matching wood clamper. It can also be used with other working devices such as breaker for working conditions such as road construction and crushing.
FAQ
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:What hydraulic pump brand are you used?
A2:We used the self-developed hydraulic pump which according to the specifications of the engine to design and develop. It’s have better matching with the engine and increasing the efficiency.
Q3:What’s the MOQ of this wheel excavator?
A3: 1 unit of this wheel excavator.
Q4:Is this wheel excavator used the four cylinder engine?
A4:Yes,the engine of this wheel excavator is four cylinder.
Q5:Is your excavator have equipped with ECU?
A5:Yes,this model have ECU.
