Excavator Tyre Machine

Introduction

The new C95 full hydraulic excavator tyre machine is a new generation flagship product that is completely developed and upgraded on the basis of B90 excavator and independently developed and manufactured. It is equipped with BOSCH high-pressure common rail injection system. The high-power engine provides powerful power guarantee for the excavator. And meet to the Chinese National Non-road Machinery Emission standard III. Also equipped with a new load sensitive hydraulic system. The power loss is greatly reduced and can better save fuel and reduce the heating capacity of the hydraulic system.  It won the CMIIC2021 star product award. XINYUAN owns the independent intellectual property right of this excavator.

Specification

Advantages

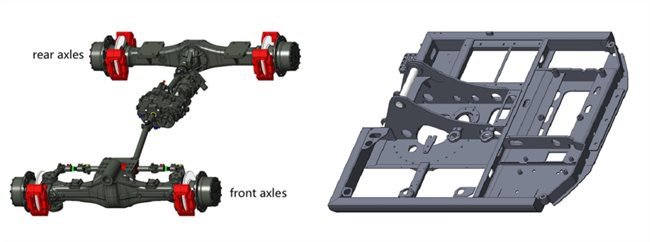

1.Undercarriages design

The undercarriages design is of wide body design. The overall center of gravity is low, which makes the excavator work more stable. And the mass distribution of the wheel excavator is balance, which can ensure the balance of operation and walking. With efficient and flexible automatic transmission system. The application range of the excavator can be greatly expanded. It has the characteristics of simple and comfortable operation and high efficiency. The transmission system adopts hydraulic transmission. The variable hydraulic pump drives the traveling motor to realize the stepless speed change of the system. The fender is equipped with an independent mounting base, which can be quickly disassembled and disassembled during maintenance.

2.Controlling system

It is equipped with a unique intelligent control system and fully adopts CAN highway technology. Also equipped with intelligent components such as linked instruments, operation panels, dual monitors, main controllers, front, middle and rear body controllers. MEMS attitude sensor is used to monitor the undercarriage attitude. If have any problems,will alarm the driver. The CPU can diagnose and alarm more than 800 kinds of faults such as power system, hydraulic system and excavator body status in real time,  which enhance the pertinence of maintenance, and realize maintenance prompt in the startup information area. All use semiconductor power elements. The electronic control system has a longer service life. It has the functions of short circuit protection, overcurrent protection and open circuit prompt. Reduce the difficulty of maintenance.

3.Safety design

The upper platform cover adopts a low body position design. Enlarge the rear view mirror and the observation mirror at the lower side to further narrow the blind area. This wheel excavator is equipped with a comprehensive light alarm system to improve the warning effect on the surrounding personnel when operating the wheeled excavator. The bright LED rear lamp and independent reversing lamp make the light source more conspicuous and improve the recognition of the appearance. At the same time, warning lights are also provided on the top of the cab and the side tool box. The switch can be controlled separately during driving and operation.
