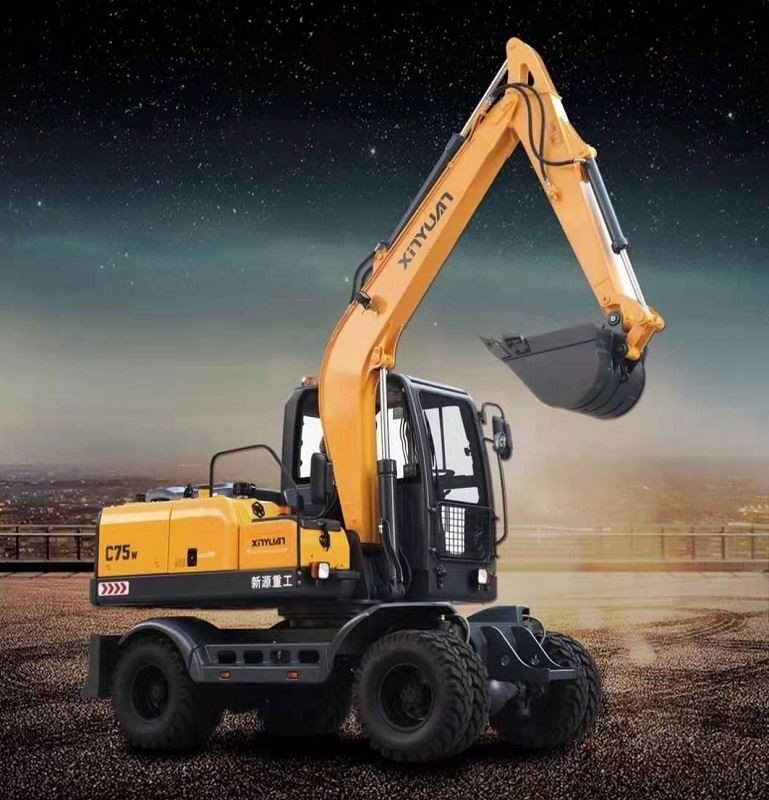

Excavator Wheel Compactor
For most people, wheel excavator meaning is juat a digging machine with four or eight wheels. Nevertheless, it is not just a digging machine for us, but also a perfect work. We pay a lot of attention to every detail in the excavator, which is the reason that we have more and more repeat business and our machine are getting more more and popular.
Parameter
| DIMENSIONS | |
| Overall Length | 6005mm |
| Overall Width | 1950mm |
| Overall Height | 2845mm |
| Spread of Axles | 2410mm |
| Tyre Diameter | 855mm |
| Width of Grounding | 430mm |
| Track | 1520mm |
| Min Height Above Ground | 230mm |
| Width of Bulldozing | 1910mm |
| Rising Distance of Bulldozing | 390mm |
| Height of Bulldozing | 45mm |
| Width of Bucket | 700mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6540mm |
| Max Digging Depth | 3365mm |
| Max Digging Radius | 6355mm |
| Max Digging Height | 6657mm |
| Max Dumping Height | 4860mm |
| Min Dumping Height | 1980mm |
| Min Front Radius | 2315mm |
| Min Tail Radius | 1840mm |
| TECHNICAL SPECIFICATION | |
| Engine | XINCHAI 4E/YUCHAI 4DK |
| Power/Speed | 50KW/2200rpm |
| Machine Weight | 6700kg |
| Volume of Bucket | 0.25m³ |
| Set Pressure of Main Overflow Valve | 22MPa |
| Max Digging Force | 30kN |
| Gradeability | 35° |
| Pressure to the Ground | 50kpa |
| Max Traction Force | 50kN |
| Max Travel Speed | 28km/h |
| Swing Speed of Platform | 10.5rpm |
| Fuel Tank Capacity | 130L |
| Hydraulic Tank Capacity | 135L |
Our Benefits of New Wheel Excavator
When you sit inside the cab of XINYUAN wheel excavator, you’ll see that it offers exceptional all-round visibility. Switch on the engine and you’ll know that it’s most smoothy rotation among all types of excavator. When you start working, you’ll feel the benefit of the comfortable seat, easy-to-use controls and smooth operation.
We are confident that our small wheel excavator is not only appeal to your senses, but also make sense for your business. With substantial loading capacity, powerful digging force and impressive travel speeds, they’re extremely productive. Fuel-efficient and easy to maintain, they offer reduced running costs. Used with a variety of attachments, they are easily adaptable for different tasks.
If you want to know more details, please feel free to contact us immediately or leave your message in the CONTACT page and we will get back to you as soon as possible.
