Hydraulic Excavator Drawing

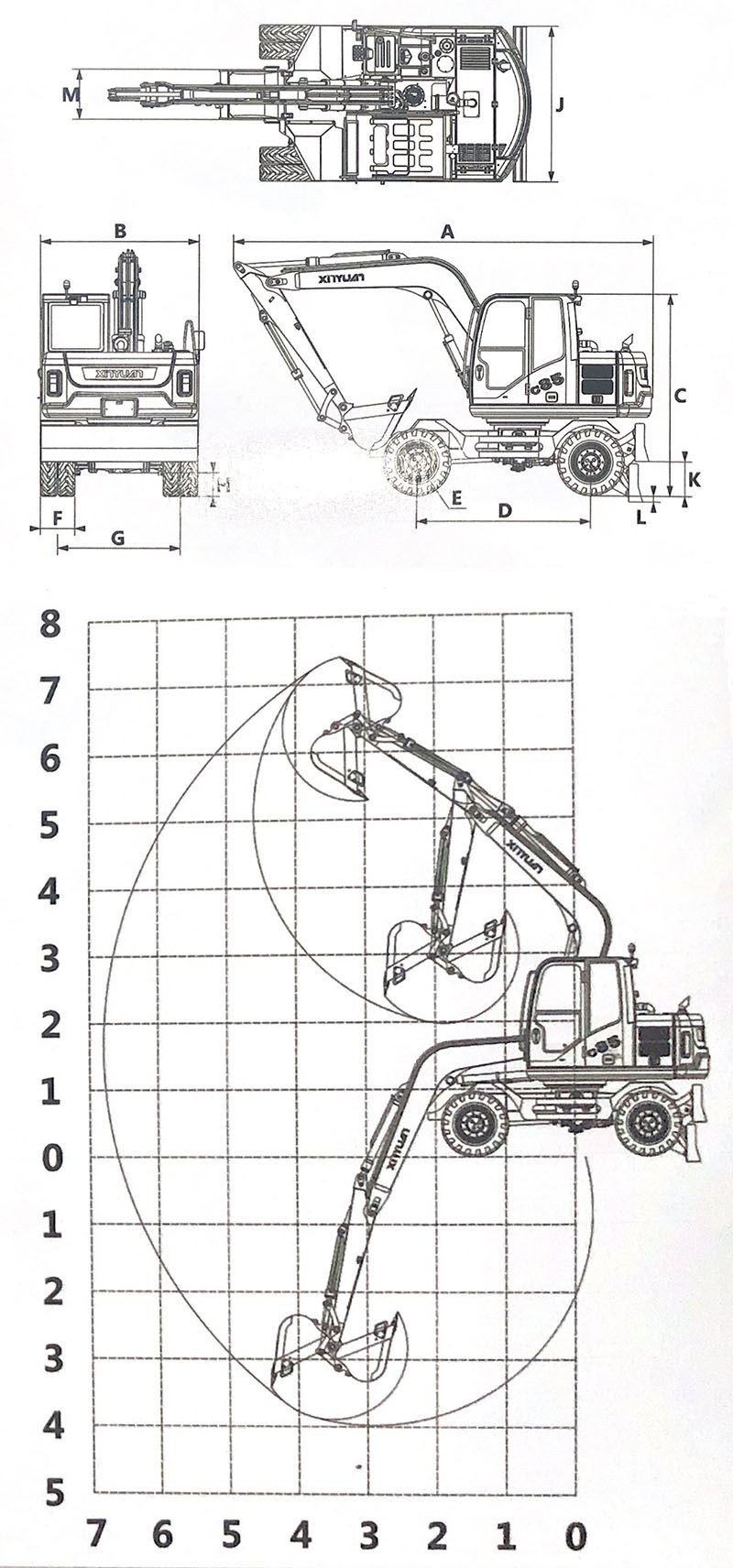

The images below are the drawings of XINYUAN C85 hydraulic excavator and these are for your reference.
Small Wheeled Excavator
You will know more professional knowledge about excavator if you are acquainted with these excavation machines.
XINYUAN C85 small wheeled excavator boasts a considerably lower center of gravity compared to equivalent machines, resulting in unbeatable stability. This smartly designed digging equipment, combined with the respected YUCHAI 4DK engine, delivers best-in-class breakout force and superior tear-out force.
There are many amazing new options on the XINYUAN C85 wheeled excavator are the eight-wheel steering and divided blades. The eight-wheel steering improves maneuverability still further by reducing the turning radius. This, and a range of other steering modes are selected from the cab using a rotary dial. The divided blades, meanwhile, offer more options for leveling the machine on uneven ground or around curbs etc.
Small Excavation Equipment
The modular quick-swift system developed by Xinyuan Heavy Industry makes the excavator a multi-functional operating machine. And users are able to recover their cost quickly. A series of different working devices are suitable for various working conditions and are designed to maximize production efficiency and durability.
Small Backhoe for Sale
For this type of machine, you may want to know more specific parameter. Here are some data you might need:
| DIMENSIONS | |
| Overall Length | 6020mm |
| Overall Width | 2250mm |
| Overall Height | 2910mm |
| Spread of Axles | 2500mm |
| Tyre Diameter | 750mm |
| Width of Grounding | 490mm |
| Track | 1755mm |
| Min Height Above Ground | 328mm |
| Width of Bulldozing | 2250mm |
| Rising Distance of Bulldozing | 500mm |
| Height of Bulldozing | 85mm |
| Width of Bucket | 720mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6800mm |
| Max Digging Depth | 3980mm |
| Max Digging Height | 7410mm |
| Max Dumping Height | 5290mm |
| Min Front Radius | 2115mm |
| Min Tail Radius | 1945mm |
| TECHNICAL SPECIFICATION | |
| Engine | YUCHAI 4DK |
| Power/Speed | 56kw/2200rpm |
| Machine Weight | 8300kg |
| Volume of Bucket | 0.30-0.45m³ |
| Set Pressure of Main Overflow Valve | 25MPa |
| Max Digging Force | 45kN |
| Gradeability | 35° |
| Max Traction Force | 50kN |
| Max Travel Speed | 30km/h |
| Swing Speed of Platform | 11rpm |
| Fuel Tank Capacity | 180L |
| Hydraulic Tank Capacity | 165L |
Little Tip
Every driver and every operator cannot be too careful when they are driving or operating the machine.
