Introduction
Meeting customers’ requirements and combining new fashion of the market, we updated the excavator into a new generation hydraulic wheel excavator-C95W. With bigger bucket and powerful engine, this machine provides high working efficiency. Higher efficiency, lower oil consumption, and more reliability are best descriptions for the wonderful excavator.
Advantages
1. Low energy consumption

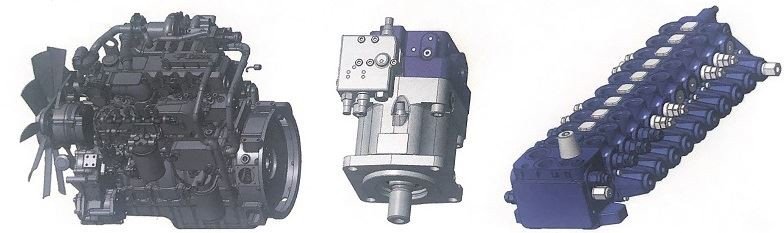

Better engine guarantees the strong working power, which also follows the domestic environmental rules. Brand-new hydraulic system assures the machine loss compared to other excavators. Besides, the bigger surface of the radiator will cool down the working machines perfectly.
2. High working efficiency
The bucket is supposed to contain 0.5 m3 at last. Two cylinders sticking to one boom makes a stronger digging power. C95 is equipped with a 180L plastic fuel tank, and it is the best supportive part for the engine. Upper platform and low chassis make sure the excavator possess a stronger bearing capacity, which means it will be more stable when moving and working.
3. More comfortable controlling space

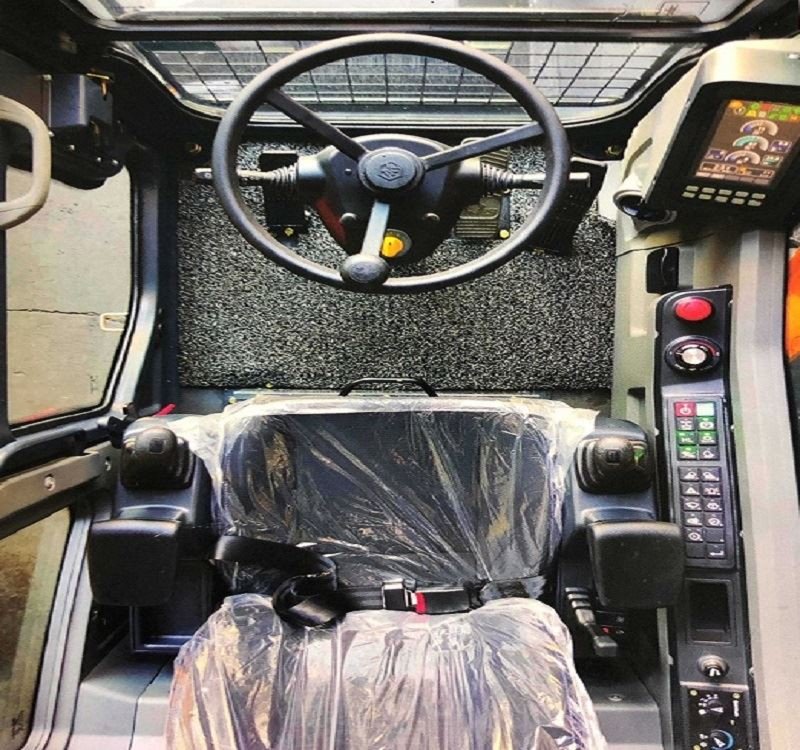

A spacious controlling room with big-sized glasses, a new operational panel and a HD screen. Besides, in order to have a better working environment in the room, it is thoughtful to put a special seat with damping designing, which allows drivers to work without too much noise and violent shaking.
4. Safe guardian

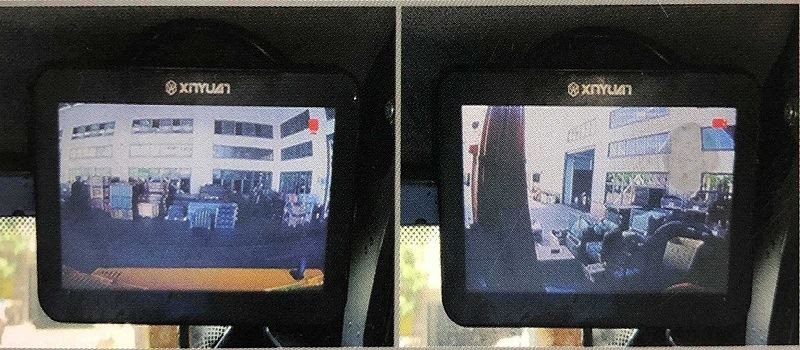

A wide reverse image makes sure the less monitoring blind spots when moving.
Details
|
Dimensions |
|
|
Overall length |
6375mm |
|
Overall width |
2250mm |
|
Overall height |
2950mm |
|
Spread of axles |
2500mm |
|
Tire diameter |
965mm |
|
Width of grounding |
490mm |
|
Track |
1755mm |
|
Min height above ground |
345mm |
|
Width of bulldozing |
2250mm |
|
Rising distance of bulldozing |
500mm |
|
Height of bulldozing |
85mm |
|
Width of bucket |
780mm |
|
Technical specification |
|
|
Model |
XYC95W |
|
Engine |
YC4DK |
|
Power/speed |
73.5KW/2200rpm |
|
Machine weight |
8875kg |
|
Volume of bucket |
0.3-0.5m3 |
|
Set pressure of main overflow valve |
28MPa |
|
Max digging force |
50kN |
|
Gradeability |
35° |
|
Pressure to the ground |
50kPa |
|
Max traction force |
48kN |
|
Max travel speed |
31kn/h |
|
Swing speed of platform |
11rpm |
|
Fuel tank capacity |
180L |
|
Hydraulic tank capacity |
165L |
|
Range of operation |
|
|
Max digging reach |
6865mm |
|
Max digging depth |
4075mm |
|
Max digging height |
7435mm |
|
Max dumping height |
5245mm |
|
Min front radius |
2250mm |
|
Min tail radius |
2090mm |
FAQ
Q1: Which trade terms do you offer?
A1: FOB, normally.
Q2: Which export port is your delivery?
A2: Xiamen port.
Q3: How do you do to ensure business long-term and have stable relationship with clients?
A3:Our products are keeping good quality and have competitive price, which is used to ensure our customers' benefit.
Q4: Which payment terms can you accept?
A4: Normally, bank T/T, 30% deposit, 70% balance before shipment.
Q5: Which countries have you exported?
A5: We have exported to Russia, Malaysia, Thailand, Vietnam etc.
Q6:If we have any problems about the goods,when can we contact with you?
A6: We provide 24h service, 7 days a week. Please feel free to contact us if you have troubles.We will get back to you as soon as possible within 12 hours.
