Wheel Excavator is…
Wheeled excavators are a variation of the popular crawler excavator, switching the latter’s tracks for a four-wheel-drive undercarriage. Wheeled excavators typically use powerful planetary axles, which are designed to oscillate and allow the machine to negotiate uneven terrain. A primary advantage of the wheeled excavator is its mobility, allowing it to be driven rather than transported to a jobsite. Most models use hydraulically extendable outriggers to help stabilize the machine when digging and earthmoving.
Our wheel diggers are highly flexible, working either on-road or off-road. The machine provides versatility, allowing you to switch between the attachments you need. Travel at high speeds in the comfort of your cab. Our fuel-efficient engines and well-matched components deliver top power and low-emissions for environmental care.
Not only do you receive a world-class wheeled excavator when you purchase from XINYUAN. We will also provide you with complete support. Our well-trained dealers are available to you all over the world, and you may choose from a variety of additional services built exclusively for our machines, allowing you to boost your profits even more.
A large fuel tank, combined with low consumption, results in not more than a 2-day work period between refi lls. The Extended Maintenance System grants longer greasing intervals on all pins compared to competition. All filters and regular fill points are grouped for easy access. Radiator and cooler cores are mounted side by side for more efficient cooling and easy access for cleaning. Optional high flow refueling pump with automatic cut off reduces downtime for regular fills.

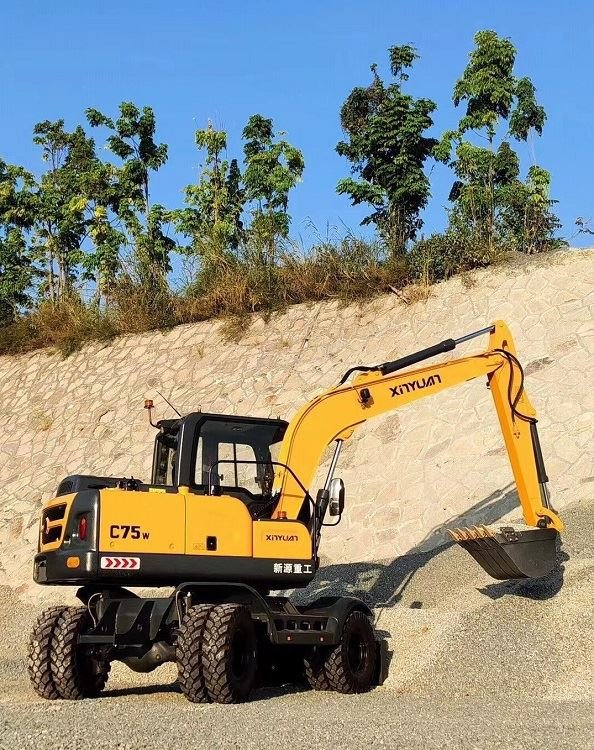

Specific Information about XINYUAN C75W
DIMENSIONS | |
Overall Length | 6005mm |
Overall Width | 1950mm |
Overall Height | 2845mm |
Spread of Axles | 2410mm |
Tyre Diameter | 855mm |
Width of Grounding | 430mm |
Track | 1520mm |
Min Height Above Ground | 230mm |
Width of Bulldozing | 1910mm |
Rising Distance of Bulldozing | 390mm |
Height of Bulldozing | 45mm |
Width of Bucket | 700mm |
RANGE OF OPERATION | |
Max Digging Reach | 6540mm |
Max Digging Depth | 3365mm |
Max Digging Radius | 6355mm |
Max Digging Height | 6657mm |
Max Dumping Height | 4860mm |
Min Dumping Height | 1980mm |
Min Front Radius | 2315mm |
Min Tail Radius | 1840mm |
TECHNICAL SPECIFICATION | |
Engine | XINCHAI 4E/YUCHAI 4DK |
Power/Speed | 50KW/2200rpm |
Machine Weight | 6700kg |
Volume of Bucket | 0.25m³ |
Set Pressure of Main Overflow Valve | 22MPa |
Max Digging Force | 30kN |
Gradeability | 35° |
Pressure to the Ground | 50kpa |
Max Traction Force | 50kN |
Max Travel Speed | 28km/h |
Swing Speed of Platform | 10.5rpm |
Fuel Tank Capacity | 130L |
Hydraulic Tank Capacity | 135L |
