Wheel Excavator is…

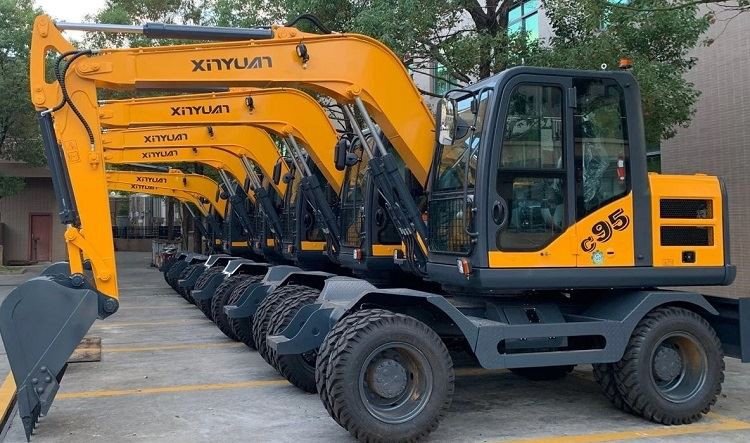

Wheeled excavators are a variation of the popular crawler excavator, switching the latter’s tracks for a four-wheel-drive undercarriage. Wheeled excavators typically use powerful planetary axles, which are designed to oscillate and allow the machine to negotiate uneven terrain. A primary advantage of the wheeled excavator is its mobility, allowing it to be driven rather than transported to a jobsite. Most models use hydraulically extendable outriggers to help stabilize the machine when digging and earthmoving.(Source from https://www.constructionequipment.com/wheeled-excavators)
How about the wheel excavator length and wheel excavator tires?
| DIMENSIONS | |
| Overall Length | 6375mm |
| Overall Width | 2250mm |
| Overall Height | 2950mm |
| Spread of Axles | 2500mm |
| Tyre Diameter | 825mm |
| Width of Grounding | 490mm |
| Track | 1755mm |
| Min Height Above Ground | 345mm |
| Width of Bulldozing | 2250mm |
| Rising Distance of Bulldozing | 500mm |
| Height of Bulldozing | 85mm |
| Width of Bucket | 780mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6865mm |
| Max Digging Depth | 4075mm |
| Max Digging Height | 7435mm |
| Max Dumping Height | 5245mm |
| Min Front Radius | 2250mm |
| Min Tail Radius | 2090mm |
| TECHNICAL SPECIFICATION | |
| Engine | YUCHAI 4DK |
| Power/Speed | 73.5kw/2200rpm |
| Machine Weight | 8875kg |
| Volume of Bucket | 0.30-0.50m³ |
| Set Pressure of Main Overflow Valve | 28MPa |
| Max Digging Force | 50kN |
| Gradeability | 35° |
| Pressure to the Ground | 50kpa |
| Max Traction Force | 48kN |
| Max Travel Speed | 31km/h |
| Swing Speed of Platform | 11rpm |
| Fuel Tank Capacity | 180L |
| Hydraulic Tank Capacity | 165L |
If you want to know more information and details, please let us help you.
Wheel Excavator Manufacturer China-Xinyuan Heavy Industry
Excavator is a necessary construction machine for a city to develop further and better, let alone countries. From gaint excavators to mini ones, from shovel to backhoe excavator, every type wins praise a lot.
Xinyuan Heavy Industry is a manufacture of small excavator with long-year experience. We are a China leading and professional manufacturer and exporter of wheel excavator, crawler excavator for almost 30 years, concerned with the design, development and production kinds of machines.
