Wheel Excavator Photo

Wheeled excavators offer much faster travel times around site and can be driven legally on public roads in many European countries, which can save on transportation costs. Crawler excavators are much less mobile, but much more stable on soft ground due to their lower bearing pressure. They are...

Product Details

Wheeled excavators offer much faster travel times around site and can be driven legally on public roads in many European countries, which can save on transportation costs. Crawler excavators are much less mobile, but much more stable on soft ground due to their lower bearing pressure. They are arguably more versatile machines, but are expensive to transport from site to site. So you should choose the right type according to your actual needs based on the specific working condition.

In addition, there is the question of what equipment buyers and users are used to and what type of equipment they favour. In the markets where wheeled excavators are popular, there is usually at least one long-standing OEM which has popularised the concept for many decades.


Wheel Excavator Photo

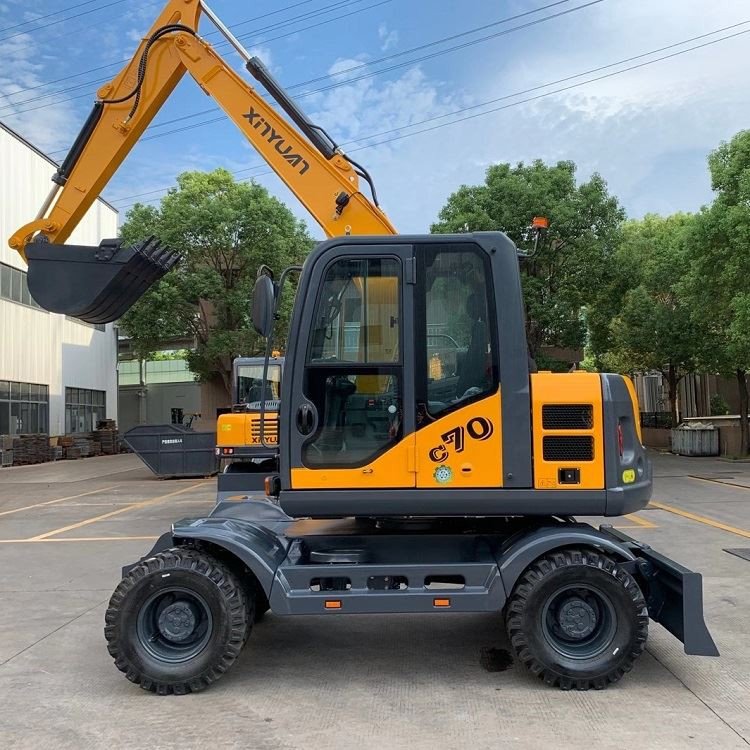

This is our XINYUAN C70 wheeled excavator in reality and it is just what it looks like as shown in this  wheel excavator photo.

This small heavy equipment offers enhanced hydraulic performance and, like all the other machines in this series, have double acting breaker lines. In common with the XY wheeled excavators, the C70s also have rotation piping for a second auxiliary hydraulic line, air conditioniing, auto idle, a refuelling pump and a key code immobilisation system.

By the way, the bucket wheel excavator operator salary is quite high in China. It is a vey technical job and there are not much people that is capable to handle it. Besides, there are some used compact excavator for sale in the market because, on the one hand, our products owns the best quality and it still works very well even it becomes a second-hand machine; on the other hand, some clients just used once or twice and they don't need it any longer.

Specific Parameters about XINYUAN C70 Wheeled Excavator

DIMENSIONS
Overall Length 5775mm
Overall Width 2010mm
Overall Height 2845mm
Spread of Axles 2456mm
Tyre Type 825-16
Width of Grounding 500mm
Track 1595mm
Min Height Above Ground 285mm
Width of Bulldozing 2070mm
Rising Distance of Bulldozing 470mm
Height of Bulldozing 50mm
Width of Bucket 700mm
RANGE OF OPERATION
Max Digging Reach 6520mm
Max Digging Depth 3630mm
Max Digging Height 6335mm
Max Dumping Height 4720mm
Min Front Radius 2345mm
Min Tail Radius 1655mm
TECHNICAL SPECIFICATION
Engine YUCHAI 4F30
Power/Speed 48kw/2200rpm
Machine Weight 6665kg
Volume of Bucket 0.25-0.40m³
Set Pressure of Main Overflow   Valve 24MPa
Max Digging Force 40kN
Gradeability 35°
Max Traction Force 40kN
Max Travel Speed 30km/h
Swing Speed of Platform 10.5rpm
Fuel Tank Capacity 140L
Hydraulic Tank Capacity 120L
