Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

Brief Introduction The B70S series is an economical hydraulic running tire excavator developed and manufactured by Xinyuan Heavy Industry on the platform of 70 series to meet the needs of customers, and implement a new design concept. In new country and urban construction, wheeled excavators...

Product Details

Producing Bottom Track Roller, mini excavator buckets for sale, mini digger required by the market quickly and efficiently has become an important element of corporate competition and a goal to be pursued in production management. Solution lists and thorough parameters and any other info will be sent for you timely for the inquiries. Talent strategy has always been an important part of our development strategy, and we hope to create a talent team of our own. We continuously strengthen our cost control efforts and continuously improve the level of refinement management. Our employees’ job satisfaction, continuous improvement and accumulation of level, skills and experience make them have a wide space for career development.

Brief Introduction

The B70S series is an economical hydraulic running tire excavator developed and manufactured by Xinyuan Heavy Industry on the platform of B70 series to meet the needs of customers, and implement a new design concept.

In new country and urban construction, wheeled excavators were frequently used. The wheel pump is a type of excavator that uses tires to operate with high mobility, flexibility, and efficiency. While a wheeled excavator will be able to make lingering journeys at speed without damage to the road surface that is efficient and economical, complicated procedures and high costs are necessary before a site transfer takes place.

Advantages

Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

The engine equipped with high-pressure common rail injection system which can output strong power and comply with the national non-road machinery stage III emission regulations.

The new load-sensitive hydraulic system can precisely control and provide the required hydraulic power according to the vehicle load, with greatly reduced power loss, fast and smooth movement of the whole machine, and much higher efficiency than the conventional hydraulic system, which ia capable to save fuel and reduce the heat generation of the hydraulic system better than ever before.

Combined heat dissipation system makes a larger heat dissipation area, which meets the heat dissipation demand of power and hydraulic system.

Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

The upper platform is designed with reference to the structure of large excavation machinery, with double D-shaped large-section side beams and side-mounted movable arm layout, so that the upper seat carrying the working device is close to the center of rotation, and the platform has higher structural strength.



The rear part adopts full cast iron one-piece rear counterweight, the unique ring hugging shape can wrap around the rear of the body, which can bring effective protection to the rear and prevent the internal parts from being damaged by accidental collision; the full cast iron counterweight is placed at the rear of the body, the center of gravity is sunken type structure design, which can have better stability during operation.

Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

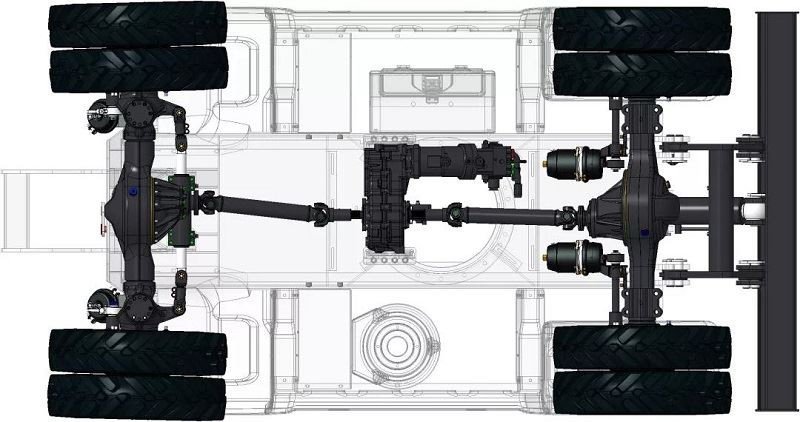

Self-developed front and rear drive axles, high-strength bridge shell, stronger load-bearing capacity, which are carried with a number of patents.



B70S has automatic variable speed drive unit with wider internal gear module, which can withstand greater torque and meet the use requirements of driving and climbing high load driving force, with whole life cycle design of components and better durability.



Unique XY00116 engineering tires, specially developed independently for harsh working conditions, original tire tread pattern with better self-cleaning, shock absorbing layer design to enhance comfort, high performance tread, improved grip performance, while more wear-resistant and puncture-resistant, enhanced tire body structure to effectively extend service life.

Technical Parameters

DIMENSIONS
Overall Length 5835mm
Overall Width 2010mm
Overall Height 2800mm
Spread of Axles 2410mm
Tyre Diameter 825mm
Width of Grounding 430mm
Track 1520mm
Min Height Above Ground 245mm
Width of Bulldozing 1910mm
Rising Distance of Bulldozing 390mm
Height of Bulldozing 45mm
Width of Bucket 700mm

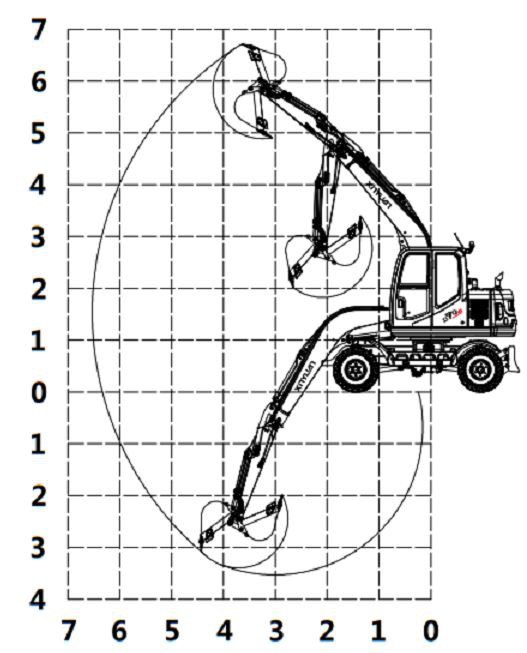

RANGE OF OPERATION
Max Digging Reach 6535mm
Max Digging Depth 3530mm
Max Digging Height 6715mm
Max Dumping Height 4905mm
Min Front Radius 2275mm
Min Tail Radius 1665mm
TECHNICAL SPECIFICATION
Engine YUCHAI 4F30
Power/Speed 48kw/2200rpm
Machine Weight 6645kg
Volume of Bucket 0.25-0.40m³
Set Pressure of Main Overflow   Valve 24MPa
Max Digging Force 35kN
Gradeability 35°
Max Traction Force 32kN
Max Travel Speed 30km/h
Swing Speed of Platform 10.5rpm
Fuel Tank Capacity 140L
Hydraulic Tank Capacity 120L

Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin

We are carefully committed to the development and construction of corporate culture, personalized and high-grade Hot Sale China Cheap Economic 3.5 Ton 3515 Kg Mini Hydraulic Crawler Excavator with Swing Boom/CE ISO EPA Euro 5/Farm Garden/Backhoe/Cabin, so that our company takes a big step forward to a modern type of enterprise. The advantage of scale makes the price and delivery time indisputable. Our goal is to satisfy customers. We adhere to the concept of ‘continuous improvement, provide value-added services for users’, with strong resource support and meticulous service, we persevere and forge ahead.
