Introduction：
C85w series is a high cost performance hydraulic wheel excavator developed and upgraded by Xinyuan on the basis of B90 high-end series in order to meet the needs of users. XINYUAN C85W is excavator with bucket or grapple and allows two distinct types as grapple and bucket and it is easy to make a switch. No matter you are in your own house yard or in the county, C85W is able to finish the tasks perfectly.
Advantages:
New Engine: The engine is equipped with high-pressure common rail injection system having excellent performance, which perfectly fits with the dual pump combined hydraulic system leading to the fast and smooth action.
The Boom: The design of boom with double oil cylinder makes the action more powerful; Lengthened boom and selectable stick make a wider working range for working device.
Distinct Working Devices: C85W is equipped with a series of accessories and quick changing system, which is capable to competent for various operation projects under different working conditions.

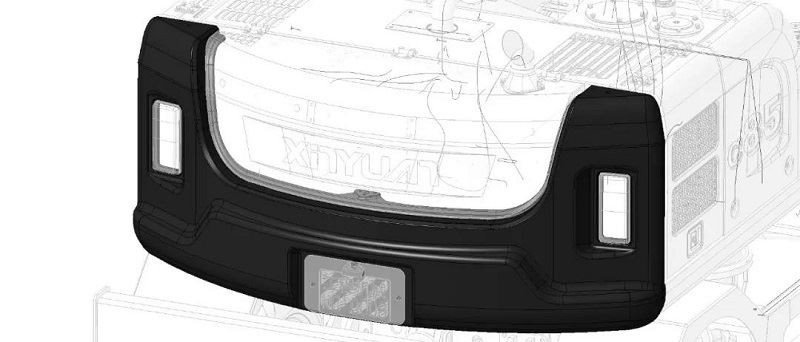

Better Stability: The weighting design of the rear counterweight iron can better ensure the stability of the whole machine.
Walking System: Efficient and flexible walking system, driven by hydraulic motor, this new excavator realizes stepless speed change walking, and has greater traction, better climbing performance, and the maximum walking speed that can reach 30km / h.
Specific Data:
| DIMENSIONS | |
| Overall Length | 6020mm |
| Overall Width | 2250mm |
| Overall Height | 2910mm |
| Spread of Axles | 2500mm |
| Tyre Diameter | 750mm |
| Width of Grounding | 490mm |
| Track | 1755mm |
| Min Height Above Ground | 328mm |
| Width of Bulldozing | 2250mm |
| Rising Distance of Bulldozing | 500mm |
| Height of Bulldozing | 85mm |
| Width of Bucket | 720mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6800mm |
| Max Digging Depth | 3980mm |
| Max Digging Height | 7410mm |
| Max Dumping Height | 5290mm |
| Min Front Radius | 2115mm |
| Min Tail Radius | 1945mm |
| TECHNICAL SPECIFICATION | |
| Engine | YUCHAI 4DK |
| Power/Speed | 56kw/2200rpm |
| Machine Weight | 8300kg |
| Volume of Bucket | 0.30-0.45m³ |
| Set Pressure of Main Overflow Valve | 25MPa |
| Max Digging Force | 45kN |
| Gradeability | 35° |
| Max Traction Force | 50kN |
| Max Travel Speed | 30km/h |
| Swing Speed of Platform | 11rpm |
| Fuel Tank Capacity | 180L |
| Hydraulic Tank Capacity | 165L |
