Introduction
The new C95 full hydraulic bucket small wheel excavator is a new generation flagship product that is completely developed and upgraded on the basis of B90 series products and independently researched, developed and manufactured. It won the CMIIC2021 star product award.
Superiority
1. High Power Engine:
Equipped with 4 cylinders electrical injection diesel YUCHAI engine. C95 wheel excavator is equipped with a high power engine that provides strong working guarantee. The emission standard of engine meet Chinese national non road machinery phase III emission regulation. Equipped with a hydraulic pump independently developed according to the characteristics of the engine. It is highly matched with the engine and could better improve the efficiency of the engine. The hydraulic pump adopts a new load-sensing hydraulic system. Compared with traditional hydraulic system,it is supposed to control precisely and provide its needed power according to the excavator's loading condition. It will decrease power wastage greatly, save more fuel and decline the heat which caused by the system.
2. The New Cooling System:
Adopted the combined heat dissipation system and equipped with intercooler, which increases the heat dissipation area. It is meets the heat dissipation requirements of engine and hydraulic system working in high temperature environment. Different from the traditional excavator, this model adopts the independently developed blow out cooling system. The heat generated by the work is blown out through the radiator to achieve better heat dissipation performance. Therefore, compared with the traditional blow in cooling system, Xinyuan excavator could maintain great working efficiency in the high-temperature environment.
3.Boom and Body:
The boom is designed with double oil cylinders, which makes the excavation force stronger. And has a very large effective working range. All cast iron integrated rear counterweight has beautiful and harmonious appearance. The body covering parts can be opened in a large area. The arrangement of maintenance items is unified and windowed. Just turn the switch slightly, and the daily maintenance items are clear and convenient. Equipped with large capacity tool box and lubricating grease barrel, daily maintenance and use are more convenient.
4.Fuel Tank:
The plastic fuel tank with a large capacity of 180L adopts rotomolding technology. The shape is designed with multiple reinforcing ribs, which makes the box more solid and cleaner.
5.Operation room:
The internal structure of the cab is spacious. Large size glass design is adopted. It has the characteristics of wide vision and small blind area. The bottom is designed with shock-absorbing plates to improve the comfort and enhance the sound insulation effect of the cab. The layout of the operating device conforms to ergonomics. Each excavator is equipped with the intelligent control system of the whole machine instrument as standard. New operation panel designed for working conditions. Equipped with reversing image and blind area monitoring function. It has an independent monitoring image display screen. Expand the driver's vision around the excavator and reduce safety accidents caused by blind areas. The cab is equipped with multi-point three-dimensional air outlets with large air volume. It can quickly change the indoor temperature in a hot environment. The function of automatic shift is adopted to make daily operation convenient.

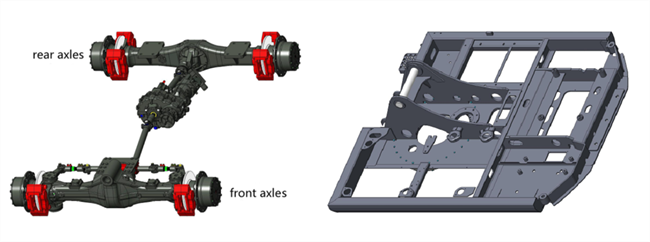

6.Independently developed axle and upper platform:
Used front and rear axles independently developed by Xinyuan. Adopted the integral casting axle housing, which has the characteristics of stronger bearing capacity. It can adapt to more harsh working environments. It has the advantages of stability, reliability and low maintenance cost. And Xinyuan has a number of patents about these technology. The upper platform is optimized and strengthened for the stressed parts of the structure. Thus, it has better mechanical properties and can bear greater work quality. All structural parts are welded by robots, with high and stable weld quality.
7.Undercarriages design:
The undercarriages design is of wide body design. The overall center of gravity is low, which makes the excavator work more stable. And the mass distribution of the excavator is balance, which can ensure the balance of operation and walking. With efficient and flexible automatic transmission system. The application range of the excavator can be greatly expanded. It has the characteristics of simple and comfortable operation and high efficiency. The transmission system adopts hydraulic transmission. The variable hydraulic pump drives the traveling motor to realize the stepless speed change of the system. The fender is equipped with an independent mounting base, which can be quickly disassembled and disassembled during maintenance.
8.Controlling System:
It is equipped with a unique intelligent control system and fully adopts CAN highway technology. Also equipped with intelligent components such as linked instruments, operation panels, dual monitors, main controllers, front, middle and rear body controllers. MEMS attitude sensor is used to monitor the undercarriage attitude. If have any problems,will alarm the driver. The CPU can diagnose and alarm more than 800 kinds of faults such as power system, hydraulic system and excavator body status in real time, which enhance the pertinence of maintenance, and realize maintenance prompt in the startup information area. All use semiconductor power elements. The electronic control system has a longer service life. It has the functions of short circuit protection, overcurrent protection and open circuit prompt. Reduce the difficulty of maintenance.
9.Working Device:
The modular quick change system developed by Xinyuan can be equipped with a series of different working devices according to the working environment. It is applicable to various working conditions to maximize production efficiency and durability.
Detail
| DIMENSIONS | |
| Overall Length | 6375mm |
| Overall Width | 2250mm |
| Overall Height | 2950mm |
| Spread of Axles | 2500mm |
| Tyre Diameter | 825mm |
| Width of Grounding | 490mm |
| Track | 1755mm |
| Min Height Above Ground | 345mm |
| Width of Bulldozing | 2250mm |
| Rising Distance of Bulldozing | 500mm |
| Height of Bulldozing | 85mm |
| Width of Bucket | 780mm |
| RANGE OF OPERATION | |
| Max Digging Reach | 6865mm |
| Max Digging Depth | 4075mm |
| Max Digging Height | 7435mm |
| Max Dumping Height | 5245mm |
| Min Front Radius | 2250mm |
| Min Tail Radius | 2090mm |
| TECHNICAL SPECIFICATION | |
| Engine | YUCHAI 4DK |
| Power/Speed | 73.5kw/2200rpm |
| Machine Weight | 8875kg |
| Volume of Bucket | 0.30-0.50m³ |
| Set Pressure of Main Overflow Valve | 28MPa |
| Max Digging Force | 50kN |
| Gradeability | 35° |
| Pressure to the Ground | 50kpa |
| Max Traction Force | 48kN |
| Max Travel Speed | 31km/h |
| Swing Speed of Platform | 11rpm |
| Fuel Tank Capacity | 180L |
| Hydraulic Tank Capacity | 165L |
Working Condition:
It can be applied to site leveling, foundation excavation, road construction, ditch excavation, backfilling, reclamation and hoisting etc. Equipped with matching wood clamper,etc. it can carry sugarcane, wood, stone and other materials. Because of its convenient movement, it can also carry out loading and transportation. Equipped with matching breaker, demolition and other crushing work can be carried out.
Company Introduction
XINYUAN founded in 1990, we focused on the development and innovation of wheel hydraulic excavators for more than 30 years. These products have won a number of national invention patents, utility model patents,appearance patents, etc. it is a modern enterprise in the research &development and manufacturing of small and medium-sized excavators.Our company has also won many honors, such as Fujian high-tech enterprise, Fujian science and technology little giant leading enterprise, Fujian manufacturing single champion (products) enterprise, Quanzhou leading enterprise and so on. Our company covers an area of 40,000 m2, with a construction area of 30,000 m2and more than 500 employees.

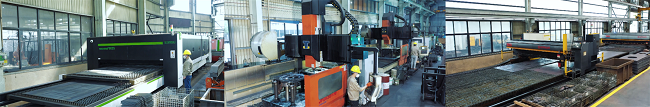

Our company has its own technical research and development team,to provide high-performance, high-quality, high-efficiency wheel hydraulic excavator for our task, and constantly develop new products to meet the different needs of users. The production is equipped with the world's advanced laser cutting equipment, robot automatic welding system, CNC gantry machining center, rail type shot blasting processing line, robot automatic painting system, etc., realizing the highly automatic production process of cutting, assembling and welding, CNC machining, surface treatment and spraying of the host structural parts.
In addition, the digital intelligent storage center has been established to optimize the management platform by means of standardized and scientific advanced means, and run through every link with professional, attentive and dedicated attitude and action,so as to provide users with better service.
FAQ
Q1: Is it could to make customer's own brand name?
A:Yes,if you need to use your brand,please provide us your brand.
Q2: Are you a manufactuer or trading company?
A:We are manufactuer.
Q3: Which countries you have exported?
A:We have exported to Philippine,Vietnam,Pakistan,etc.
Q4: Which export port is your delivery?
A:Xiamen port.
Q5: How long is your products guarantee?
A:About 1 year products guarantee.
Q6: Where is your factory?
A:Our manufacture located in Quanzhou city, Fujian Province, China.
Q7: What engine brand are you used?
A:YUCHAI or XINCHAI.
Q8: What are your main products?
A:6tons to 8tons small wheel excavator.
Q9: What is your terms of delivery?
A:We could accept FOB,CNF,CIF.
Q10: What hydraulic pump brand are you used?
A:We used the hydraulic pump which our independent research and development for better matching with our engine.
Q11: What's the MOQ for your production?
A:1unit wheel excavator is MOQ.
Q12: Your engine is four cylinders?
A:Yes. It's four cylinders and used electrical injectors.
Q13: What are your engine emission standards?
A:YUCHAI engine is meet Chinese National standards Ⅲ. XINCHAI engine is meet National standards Ⅱ.
Q14: What is the mode of transportation?
A:By sea or by road.
Q15: How long will it take to produce?
A:Normally 25-30 days. In case of force majeure, the time will be extended.
Q16: What is the difference between mechanical and hydraulic?
A:The difference is what type of traveling motor was they used. Hydraulic type is more smooth than mechanical type in moving.
Q17: Can we require to change the engine?
A:Sorry,we can't. Because YUCHAI and XINCHAI engine is cost-effective engine brand after we long term test. And we have long term cooperation with YUCHAI and XINCHAI, they also could provide the better service for engine.
Q18: Did your excavator have ECU or ECM?
A:Yes,our excavator have ECU.
Q19: Can we require to change the hydraulic pump?
A:Sorry,we can't. Because the hydraulic pump is according to our engine performance to design and product. Having better matching with our engine.
Q20: If the parts of excavator have broke,what should I do?
A:Please immediately take photos of the broke parts and send to us. We will provide the resolvent to you after.
